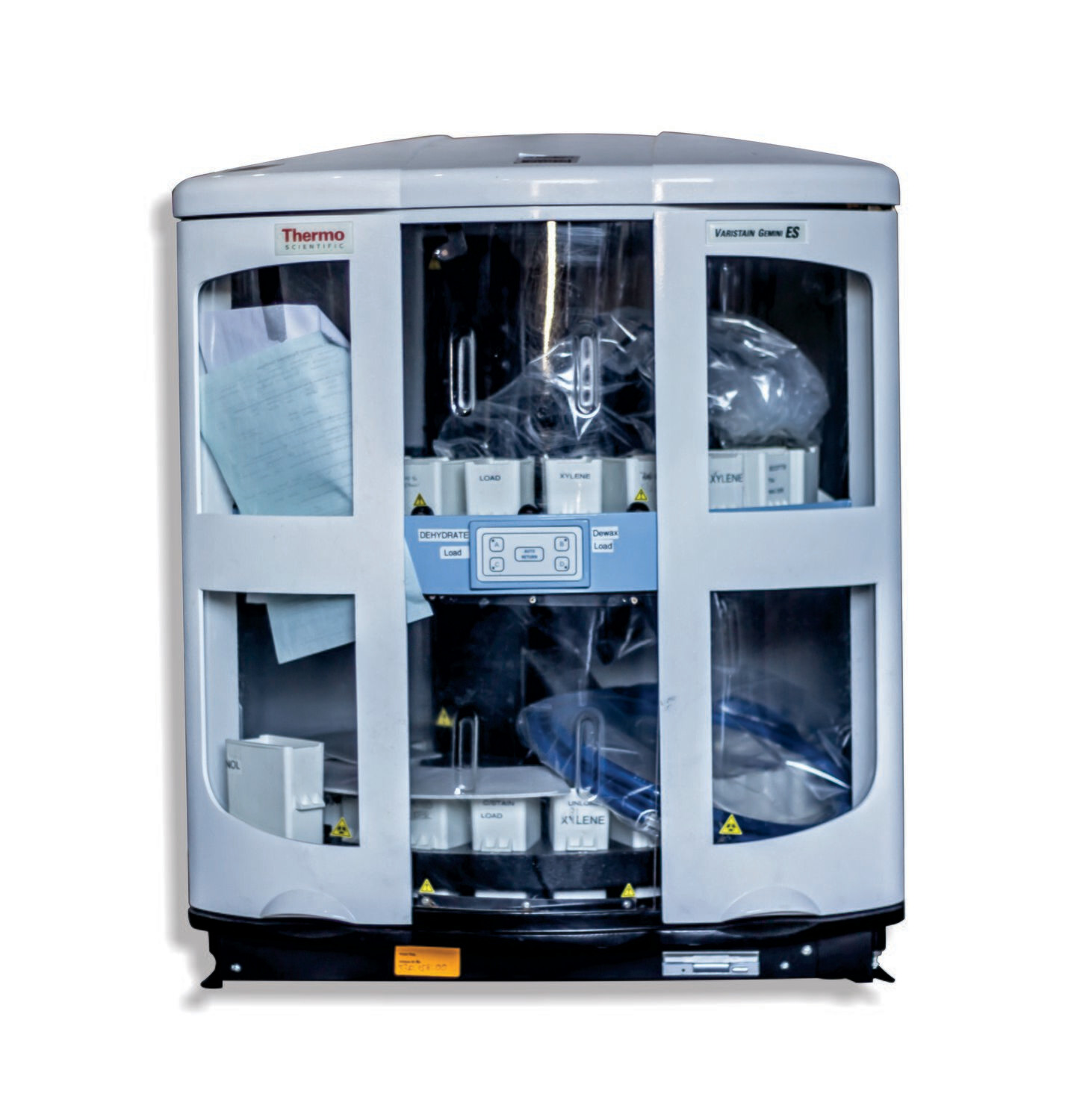

Thermo Scientific™ Varistain™ Gemini ES Automated Slide Stainer

Thermo Scientific™ Varistain™ Gemini ES Automated Slide Stainer

Maximize efficiency by organizing staining workflow with the multidimensional Epredia™ Varistain™ Gemini ES Automated Slide Stainer.

Specifications

Certifications/Compliance Designed to meet IEC 61010. CSA approved. UL listed. CE marked (IVDD compliant).

Dimensions (L x W x H) 28 x 28.5 x 34.5 in. (71 x 72 x 88cm)

Height (English) 34.5 in.

Height (Metric) 88cm

Length (English) 28 in.

Description

Performance

Loads 20-slide baskets with up to 100 slides at once

Step-start available from any station

Urgent Start gives user opportunity to prioritize “urgent” baskets

Auto-return allows user to recall any loaded basket to load door

Suggested staining protocols can be easily modified to lab procedures

Capable of managing multiple protocols without affecting throughput

Quality Control and Safety Features

Displays reagent usage and batch throughput

Controls fumes through an easy-to-change carbon filter or an optional external vent adapter kit

Offers optional passcode protection to secure customized protocols

Battery backup provides approximately 40 min. of power in the event of a power failure

Smart software keeps unit's robotic arm from entering user access areas

Physical Specifications

D × W × H: Stainer, 28 × 28.5 × 34.5 in. (71 × 72 × 88cm)

Power supply, 18.5 × 14 × 5.75 in. (46.3 × 35 × 14.5cm)

Weight: Stainer, 176 lb. (80kg); Power supply, 22 lb. (10kg)

Electrical requirements: 300VA

Two-level design minimizes footprint while making all stations easily accessible

Includes:

A total of six water stations, 26 reagent stations, and four configurable loading and unloading stations

Charcoal filter

Staining basket and carrier (two packs of five each)

Three-well water station (two fitted)

Pack of six single pot covers

Pack of four multi-pot covers

8′ (2.5m) long water inlet hose

Cytology stainer (without heat)

35 stain pots supplied, fitted

Histology stainer (with heat)

30 stain pots supplied, fitted

Pack of three spare staining pots

Monitor cable

Screened data cable

Operator manual (specify language)

Service record book
